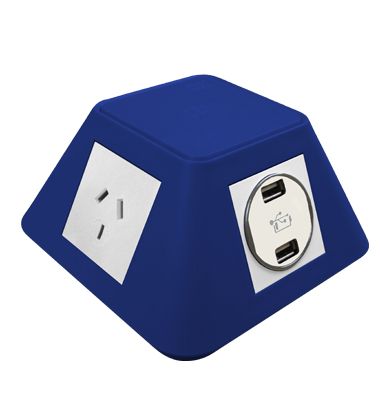

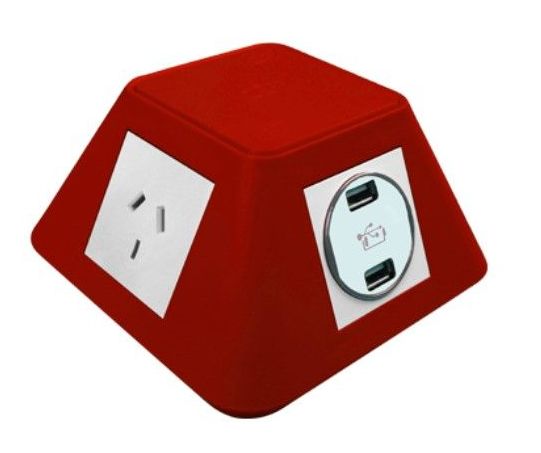

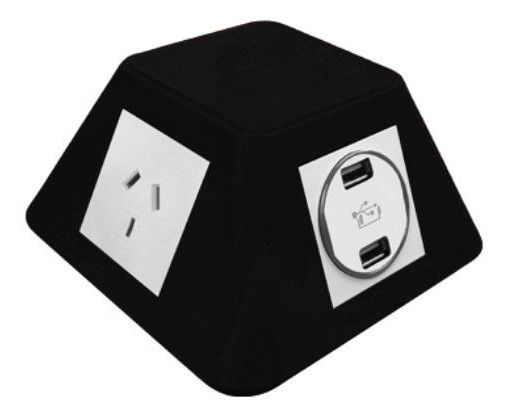

Pyramid Power Pack

Item Description

Winning a finalist award in the 2016 Good Design Australia Awards and honourable mention in the International Design Awards 2016, the Pyramid on-desk module gives the flexibility of a power board but in a stylish package.

  • The Pyramid can be supplied in two different ways:
    As a portable power and mobile charging station, using a standard flexible cable with a 3-pin plug; or
  • Can be secured through a standard 80mm grommet hole


Features

  • Four gang unit with a combination of power, data and USB charging available

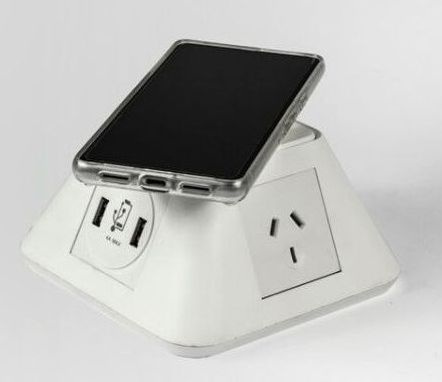

  • Option for QI standard wireless phone charging (on top of module)
  • Power/Data/AV segregation
  • Check out the ‘Options’ tab for the various colour options and combinations.
  • Some phones may require an addition of a receiver coil to allow wireless charging



DOWNLOAD SPEC SHEET REQUEST A QUOTE

Colours:

• Body is available in black, white, grey, red or blue. Custom colours are available upon request and meeting the minimum order quantities.

• Sockets available in black, white, red, blue or grey


Leads

Leads can be supplied with:

• An 1000mm 20amp 3-core flex with male coupler, white or black; or

• A 2000mm 10amp 3-core flex with 3-pin plug, white, black or grey

• Other lengths available upon request


Outlets

• 10amp auto-switched flush mount

• Range of international sockets available

• Speak to our team to discuss your specific configuration needs of power and data/AV needs


Outlets available:

• HDMI

• USB 3.0

• Cat6 RJ45

• Audio

• USB Charging


Fixings:

• Can be fixed using an 80mm grommet or treated as a portable unit.

• Assembled in Australia and fully customisable

• Can be treated as a portable power and mobile charging station, using a standard flexible cable with 3-pin plug; or can be secured through a standard 80mm grommet hole

• Some phones may require an addition of a receiver coil to allow wireless charging. Check mobile phone compatibility using this link.


Dimensions

• 138mm x 138mm x 74mm


Leads

• Supplied standard with either 1000mm 3-core flex with a male coupler or 2000mm flex with a 3-pin plug

• Other lengths are available upon request


Compliance:

• Power/data/AV segregation

• Complies with the requirements of AS/NZS3000 & AS/NZ61535:2011

• USB Charger complies with AS/NZS CISPR 14.1:2022

• Wireless Charger complies with AS CISPR 11:2017 & ARPANSA RPS3

DOWNLOAD SPEC SHEET
